Sample Parking Stage for Ultra-High Vacuum (UHV) Systems
The Sample Parking Stage is an advanced solution for managing flag-style sample plates within surface analysis instrumentation. Specifically designed to accommodate Omicron, Specs, and Aarhus flag-style sample plates, this stage is ideal for storing multiple samples within an ultra-high vacuum (UHV) analysis chamber or sample preparation chamber. The Sample Parking Stage features a versatile carousel system, allowing for efficient sample storage and handling.
Key Applications:
- Efficient storage and management of flag-style sample plates in UHV environments
- Utilised in surface analysis instrumentation, sample preparation, and UHV research laboratories
- Suitable for handling samples in vacuum analysis chambers, beamline experiments, and high-precision scientific applications
Key Features
- Available in configurations with 4, 8, 12, and 16 flag-style sample parking positions.
- Precise carousel rotation through a magnetically coupled drive (MagiDrive) to present each sample accurately for transfer
- Linear shift option allows adjustment of height or complete retraction of the carousel for easy access
- UHV Compatible, ensuring compatibility with ultra-high vacuum systems and maintaining system integrity
- Bakeable to 250ºC, allowing for use in high-temperature UHV processes
- Various automation and motorisation options available for each axis of motion, enhancing operational flexibility
How It Works:
- Each sample plate is securely held in place by a pair of springs, minimising the risk of displacement regardless of the parking stage’s orientation
- The carousels are driven by a magnetically coupled rotary drive (MagiDrive), enabling each carousel to be presented sequentially to the transfer mechanism, whether it’s a Wobble Stick, magnetically coupled transfer arm (PowerProbe), or linear rack and pinion transfer device

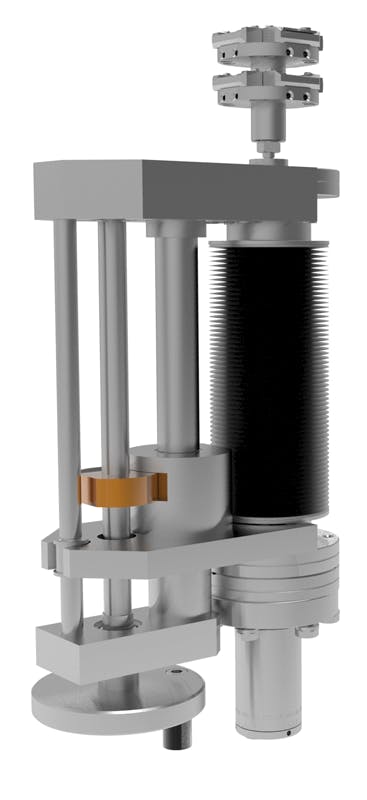

- The entire Sample Parking Stage can be suspended from a bellows-coupled linear Z-shift (LSM), typically offering a stroke of 25-100mm. This feature allows for height adjustments or complete retraction to facilitate access
- Vertical stacking of multiple carousels provides additional storage capacity for up to 16 sample plates. In this setup, the linear motion option is essential for accessing different levels of stored samples
Customisation Options:
The Sample Parking Stage can be customised to fit specific requirements, including variations in carousel size, automation features, and height adjustments. With options for automation, motorisation, and vertical stacking, the stage can be tailored to meet the needs of diverse UHV applications. Its design ensures reliable sample storage and handling, contributing to enhanced efficiency in surface analysis and sample preparation processes.
If you would like to discuss your project with our engineering team, please contact us.
