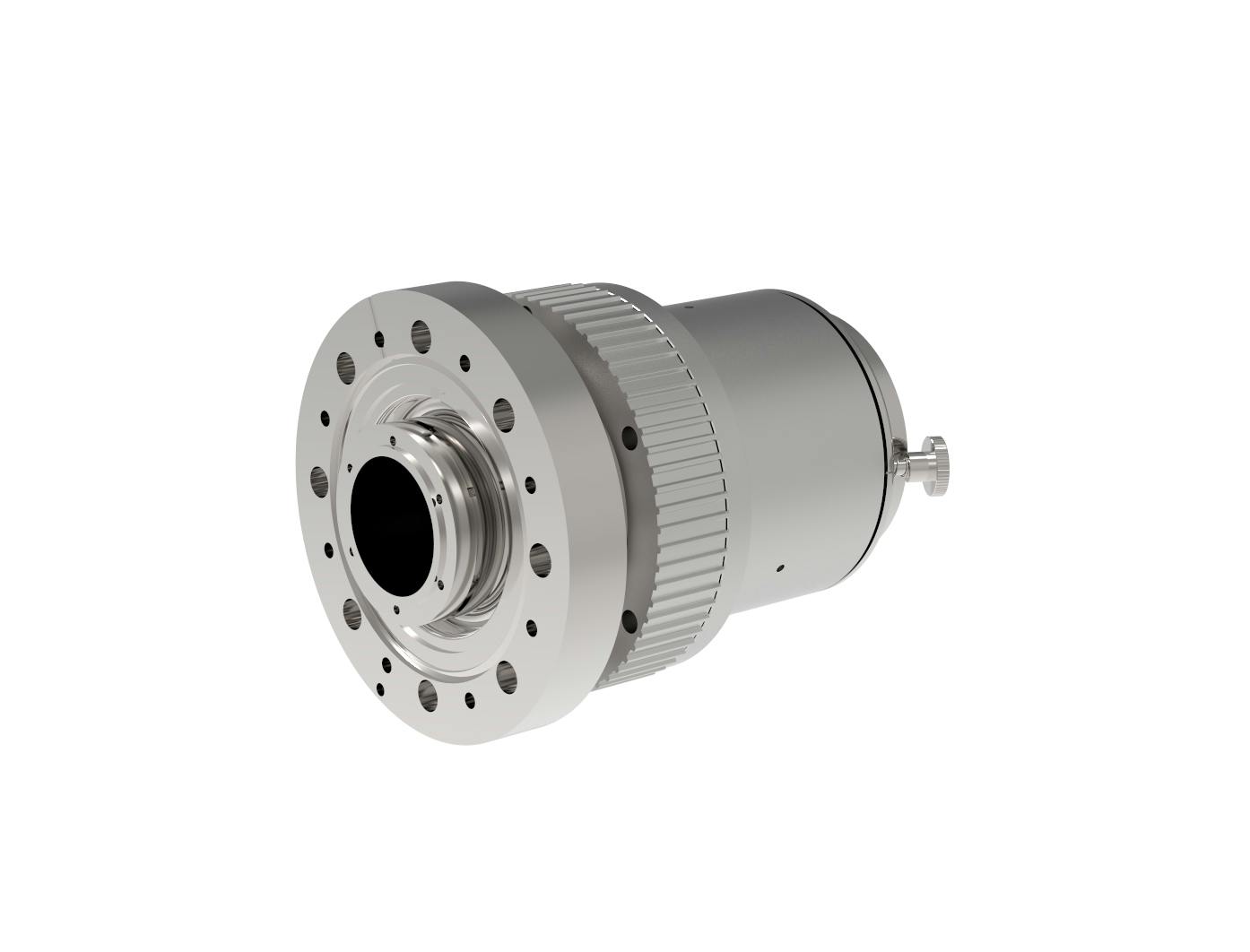

MD63 solid range
The MD63 provides a high 25Nm breakaway torque on a CF64 flange. Bakeable to 250°C without having to remove the outer magnets. Custom options also available.
The MD63 rotary feedthrough provides high torque (25 Nm) rotation through a high stiffness coupling. This drive would be ideally suited to robot-type or platen rotation applications. The MD63 is also available in a hollow configuration. For higher-torque applications (up to 40 Nm) see MD64LBM and MD100H.
Key Specifications
- 25Nm breakaway torque
- Bakeable to 250°C without having to remove the outer magnets
- Maximum axial load 250 N (56 lbf)
- Motorisation and pneumatic actuation options
- Custom shafts available
Product configuration tool
If you would like to discuss your project with our engineering team, please contact us.
