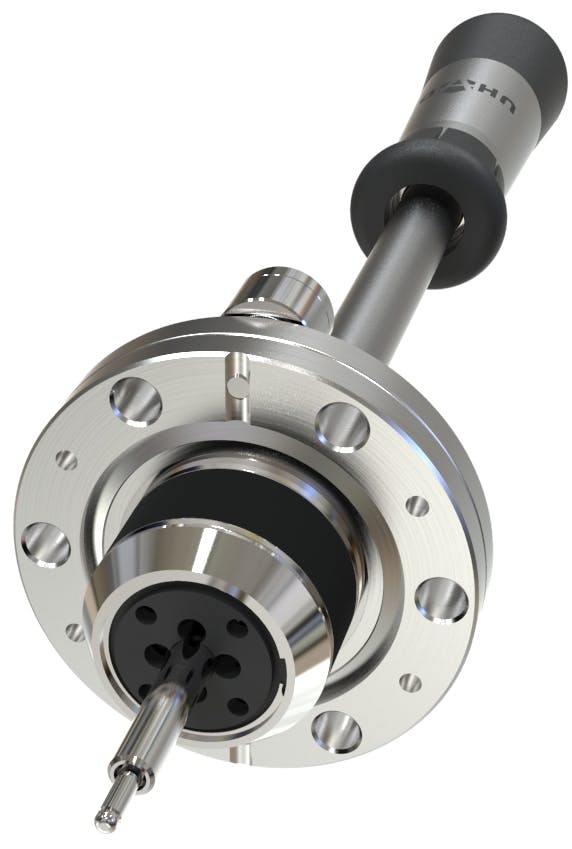

Magnetically-coupled wobble stick

The WSG40 range of wobble sticks have been designed to offer precise manual manipulation of a range of sample holders using UHV Design's high power magnetic coupling technology.

The WSG40 is equipped with a trigger mechanism located on the outer magnetic assembly to actuate the gripper mechanism.

The WSG40 includes in-line and right-angle gripper options for secure manipulation of flag style sample holders. Available up to 350mm stroke range as standard. Longer strokes are available upon request.



Key Features

  • In-line and right-angled version with +/-22o tilt
  • 100-350mm stroke range (50mm increments)
  • Longer strokes are available upon request. Contact us for details.
  • Trigger actuated gripper options for flag style sample holders, see below.
  • Bakeout to 250oC without the need to remove the outer magnet assembly
  • No thrust due to vacuum




 scroll down for 3D model configuration and download tool





Product Downloads


       Wobble stick brochure

Product configuration tool

Click here to learn how to use the product configuration tool

uhv-configure
Configure product

Configure your product using the configuration menu

Read more
uhv-generate
Generate preview

Preview your configuration by clicking 'Generate preview'

Read more
uhv-send
Request CAD via email

Enter your email and format requirements and 'Send email' to request a CAD file

Read more
uhv-request
Request quotation

'Request for quotation' for a single item, or add the item to your enquiry

Read more

Activating the gripper


The end-effector is actuated using the rear trigger mechanism.





Gripper Option | In-line flag blade end-effector

Compatible with standard flag style sample holders.




Gripper Option | In-line flag style jaws


Compatible with flag style sample holders.





Gripper Option | Right-angle flag style jaws


Compatible with flag style sample holders.







Wobble lock and brake option

The wobble lock allows the wobble stick to be locked in the centre-line position to allow for linear only actuation. The thimble brake allows the linear positon to be locked. Contact us for a quotation.


Wobble lock and brake option.
