Compact XYZ manipulator with integrated tilt

Compact XYZ manipulator with integrated tilt

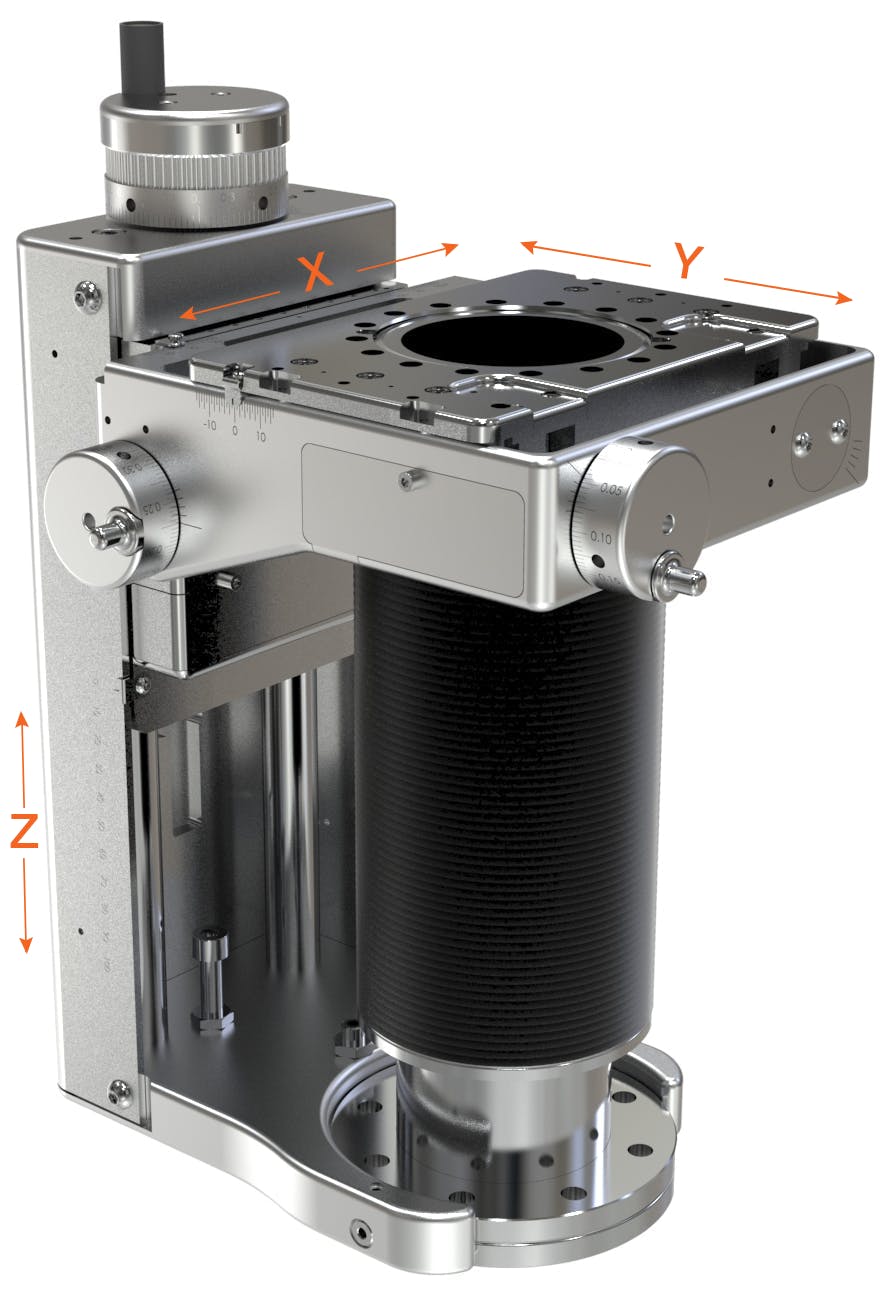

Our TETRAXE manipulator offers precise manipulation in X, Y and Z axis with convenient +/-2o tilt integrated into the mounting flange assembly.  Rugged construction combined with ultra-compact footprint make the TETRAXE an ideal manipulator platform where space is at a premium.

In situations where available space is limited, in addition to an ultra-compact footprint, the TETRAXE allows both the X and Y actuation methods to be moved to alternative positions to avoid mechanical clashes if required.  Moving the manual handwheels or motorisation kits requires no specialist tools or training and can be completed on-site by following a simple process. In addition to this feature, the mounting flange incorporates an integrated +/-2 degree tilt for convenience during final alignment.

Straddled holes on the fixed flange are offered as standard with In-line clear holes available as an option.

The TETRAXE is availble in manual or motorised configurations with the option to  upgrade from manual actuation to motorisation at a later date using simple 'DIY' motorisation kits.


Combining the TETRAXE with additional components such as rotary feedthroughs, service collars and custom shafts allows advanced manipulators to be created.

Key Features

  • 25-300mm Z motion options
  • XY options include +/-12mm (38mm bore), +/-15mm (64mm bore) and +/-25mm (102mm bore) with integrated +/- 2o tilt
  • High resolution performance
  • Can be motorised retrospectively
