X&Y Manipulators

The 1st choice for demanding production environments

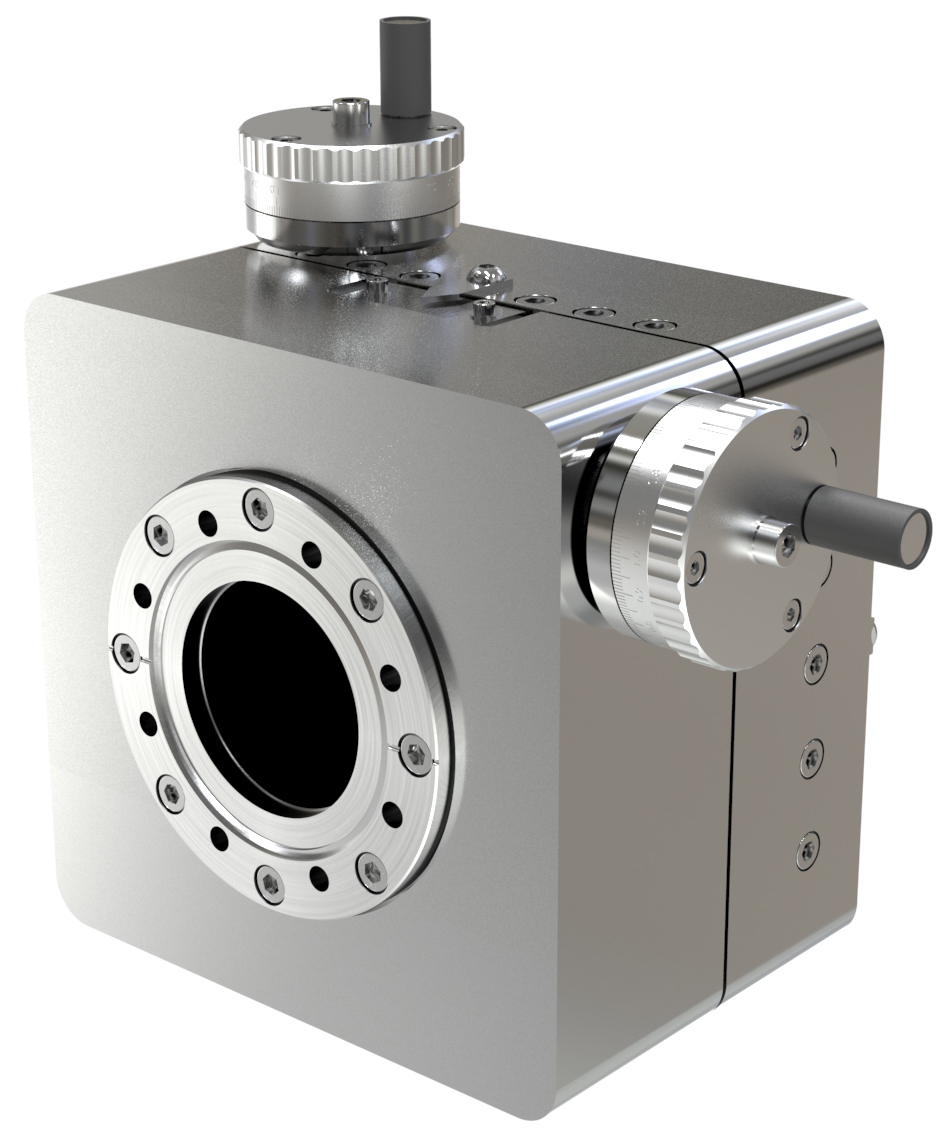

With its precise motion, the multi-base XY manipulator is ideal for both research and demanding production environments. Not only that, this versatile device has true UHV performance and rugged construction which allows for mounting in any orientation.

Key Specifications

  • Any-orientation mounting without additional supports
  • Up to +/- 40mm X & Y motion
  • High precision kinematic drive and guidance system, eliminating the need
    for vulnerable cross-roller slides
  • Rigid stops limit travel protecting the bellows
  • Robust construction for high loads
X&Y Manipulators

Product Downloads

How it works

The multi-base design includes two parallel flanges; one remains fixed, whilst the other provides movement. A high quality, supple, edge-welded bellows spans the flanges to accommodate the required motion, whilst ensuring an all-metal vacuum enclosure. The device works by adjusting the position of the travelling flange in relation to the fixed system mounting flange.

Product configuration tool

If you would like to discuss your project with our engineering team, please contact us.
