Linear Shift with Integrated X Shift

Linear Shift with Integrated X Shift

LSMX Series

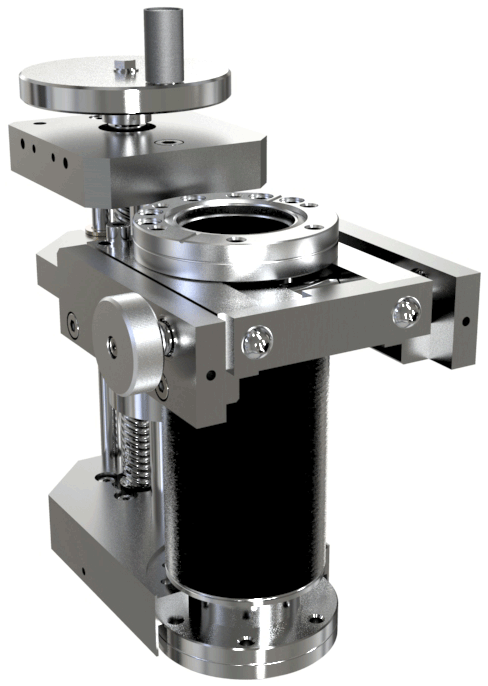

Linear motion along the port axis (Z) with the additional facility to adjust the travelling flange laterally (X axis) by +/-5mm to facilitate alignment. The travelling flange angle remains constant throughout actuation.


The series can be actuated with a manual handwheel, pneumatic cylinder, DC motor or stepper motor.  See 'linear shift customisation options'.


Key Features

  • +/- 5mm lateral (X axis) motion
  • Smooth kinematic alignment
  • Reliable and rigid construction
  • True UHV performance
  • Bakeable to 250°C
  • Demountable bellows assembly

 scroll down for 3D model configuration and download tool

Product Downloads

       LSMX technical datasheet

Product configuration tool

Click here to learn how to use the product configuration tool

Configure product

Configure your product using the configuration menu

Read more
Generate preview

Preview your configuration by clicking 'Generate preview'

Read more
Request CAD via email

Enter your email and format requirements and 'Send email' to request a CAD file

Read more
Request quotation

'Request for quotation' for a single item, or add the item to your enquiry

Read more
