MD100H series

CF100, 6" OD flange, Hollow MagiDrive series

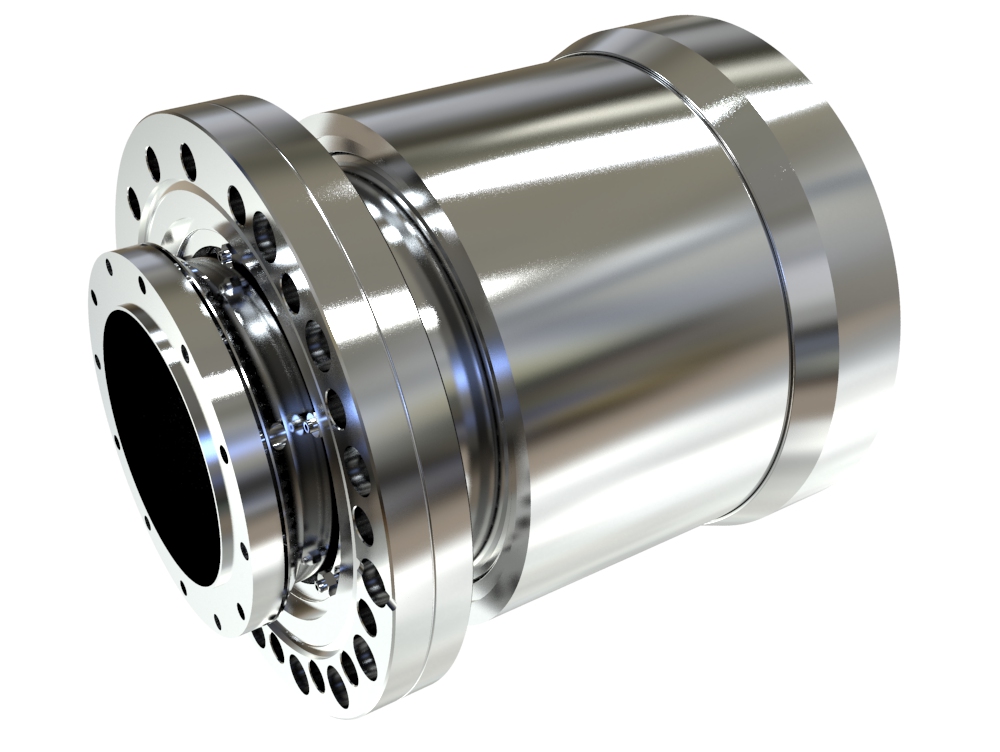

The MD100H  rotary feedthrough is selected for demanding, high torque and stiffness applications where a large bore is required, such as indexing robots or providing substrate rotation. The MD100H has a 65mm clear bore which enables a component to pass through the centre, such as a heater module, cooling tubes or a second MagiDrive rotary feedthrough.


Download technical datasheet

Key features

  • Magnetically-coupled fail-safe design rotary feedthrough
  • 65mm clear bore
  • Powerful, stiff coupling
  • No bellows or dynamic seals
  • Bakeable to 250°C
  • Zero backlash under low load
  • True UHV performance

Product configuration tool

Click here to learn how to use the product configuration tool

uhv-configure
Configure product

Configure your product using the configuration menu

Read more
uhv-generate
Generate preview

Preview your configuration by clicking 'Generate preview'

Read more
uhv-send
Request CAD via email

Enter your email and format requirements and 'Send email' to request a CAD file

Read more
uhv-request
Request quotation

'Request for quotation' for a single item, or add the item to your enquiry

Read more

Specifications

MagiDrive body MD100H
System mounting flange CF100 152mm (6") OD CF
Fixed rear flange CF64 114mm (4.5") OD CF
Construction Fabrication
Clear bore diameter 65mm
Shaft style Spigot flange
Break-away torque 40 Nm (29.50 lbf ft)
Maximum no load spin speed  200 rpm
Maximum axial load 415 N (93 lbf)
Maximum bakeout temp 250°C
Available Downloads
MD100H Technical Datasheet Download
Motorisation Gear & Torque Options Download
