MD35LB hollow range

MD35LB hollow range

CF40, 2.75" OD flange, 6Nm torque

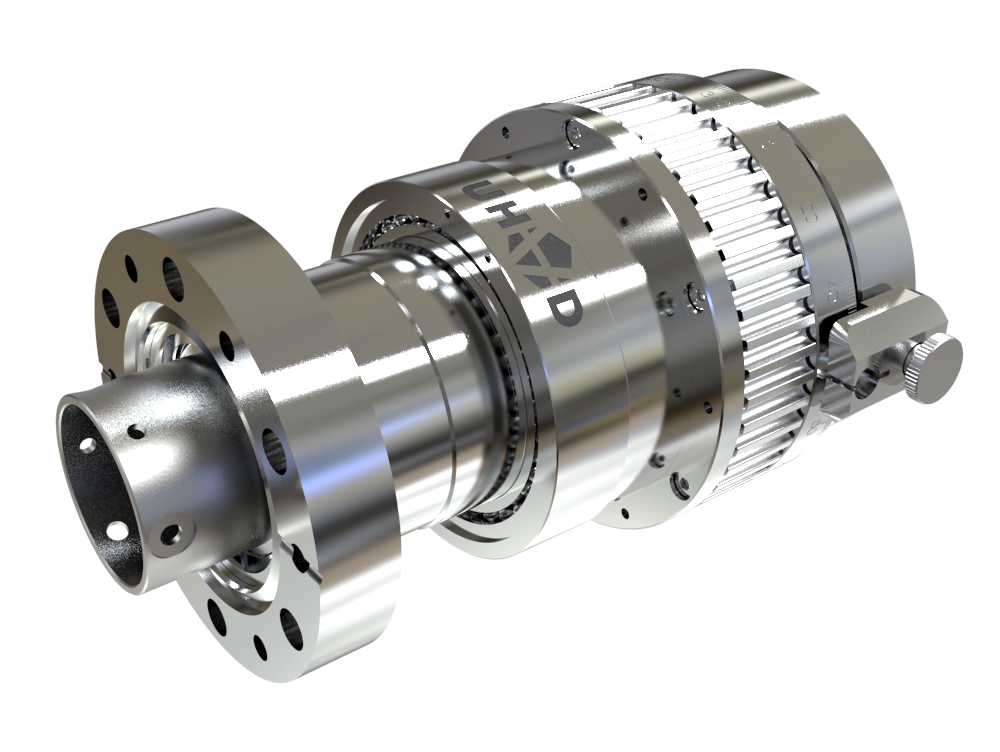

MD35LB is a medium/high-torque, medium-stiffness rotary feedthrough with 6Nm breakaway torque. The MD35LB is provided with calibrated thimble, brake and timing pulley as standard. An adjustable rear flange enables rotation of position prior to fixing.

The large 27mm clear bore allows a component to pass through the centre, such as a heater module, a feedthrough or a cold lance.

Key features

  • 27mm clear bore
  • 6Nm breakaway torque
  • Bakeable to 2500C without having to remove the outer magnets
  • Maximum axial load 20N (4.5 lbf ft)
  • Motorisation and pneumatic actuation options
  • Custom shafts available

 scroll down for 3D model configuration and download tool

Product Downloads

High Precision Motorisation Option with <0.02 degrees angular precision

Using the Hypoid Drive on our MultiCentre multi-axis precision stages the angular precision achieved is typically <0.02 degrees.
 This is an important figure of merit as users of MultiCentre manipulators may be performing various angle resolved experiments such as X-ray Photo-electron Diffraction (XPD) where such precision is key.

Contact us to discuss your application.
