MD64LB(M) hollow range

MD64LB(M) hollow range

CF64, 4.5" OD flange, 8Nm/40Nm torque

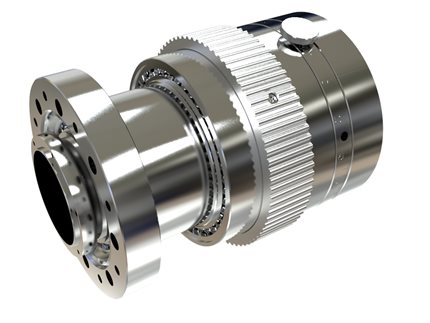

The MD64LB and MD64LBM MagiDrives provide high (8 Nm) or ultra-high (40 Nm) torque rotation through a high-stiffness coupling with a large 48.5mm clear bore. This rotary feedthrough is ideally suited to platen rotation or robot type applications. The MD64LBM supplies higher torque with the same dimensions.

Key features

  • 48.5mm clear bore
  • 8Nm & 40Nm breakaway torque options
  • Bakeable to 2500C without having to remove the outer magnets
  • Maximum axial load 415N (93 lbf)
  • Motorisation and pneumatic actuation options
  • Custom shafts available
