Push Pull Actuators: High-Precision Solutions for Industrial Applications

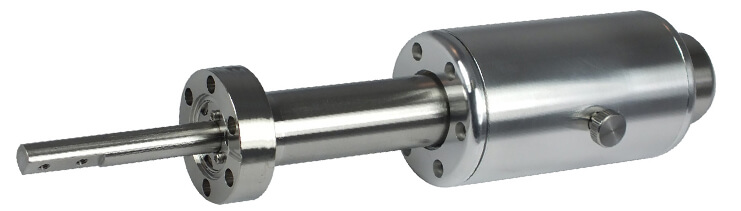

At UHV Design, our Push Pull Actuators are engineered for high-duty, high-torque, and high-precision linear motion applications in ultra-high vacuum (UHV) and demanding process environments. These magnetically coupled vacuum actuators provide exceptional axial stiffness, high load capacity, and zero vacuum thrust, making them ideal for precise positioning, manipulation, and process control. Our robust, long-life design eliminates vulnerable components such as bellows and dynamic seals, improving reliability, reducing maintenance requirements, and ensuring consistent performance in high-vacuum and high-pressure conditions.

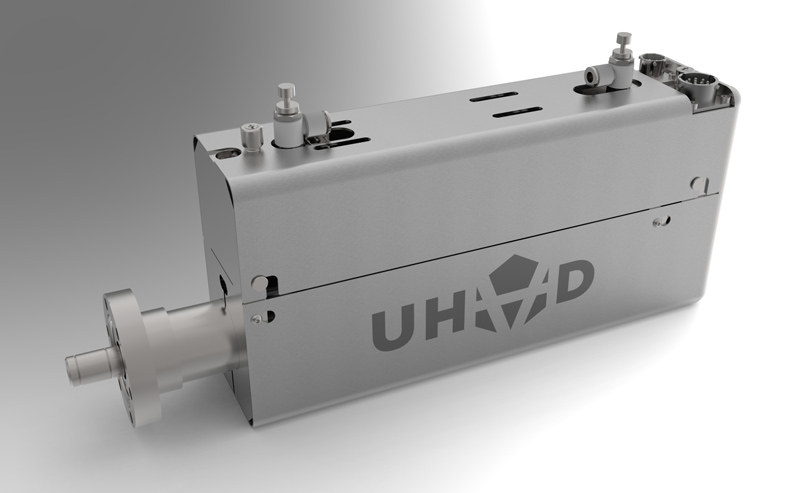

For enhanced versatility, the Push Pull range includes both linear and linear/rotary motion solutions with stroke lengths of up to 300 mm (12 inches). Linear models can be supplied with pneumatic or motorised actuation options, enabling remote operation, automation, and seamless integration into advanced vacuum systems and automated processes. Combined with proven magnetic coupling technology, these features deliver accurate, repeatable motion and dependable long-term performance across a wide range of scientific, research, and industrial vacuum applications.
Key Features
- Magnetically-Coupled Technology: Eliminates the need for bellows or dynamic seals, increasing durability and extending product life.
- High Torque & Axial Stiffness: Designed for heavy-duty, rotary, and linear applications that demand precision and strength.
- Zero Vacuum Thrust: Ensures smooth operation in vacuum environments, making it ideal for various industrial applications.
- Long Stroke Length: Offers linear and linear/rotary motion solutions with strokes of up to 300mm (12 inches).
- Field Motorisation: For applications that require multi-positioning, our linear bellows drives can be motorised in the field, providing flexible and precise control.
- High-Precision Bellows Drives: Exceptional resolution (two times better than conventional units) and guaranteed minimum lifespan of 10,000 cycles, designed for precise, multi-position linear applications.
Applications of Push Pull Actuators
Our Push Pull actuators are ideal for industries that require precision control in harsh environments, such as high-vacuum systems, semiconductor manufacturing, and particle accelerators. Their high-duty performance and customisable options ensure that these actuators meet the demands of advanced industrial and scientific applications.
Why Choose UHV Design’s Push Pull Actuators?
- Reliability: The magnetic coupling provides robust performance without the need for failure-prone components like bellows.
- Precision Engineering: Our actuators offer unparalleled accuracy and resolution, making them suitable for high-precision applications.
- Customisation: We offer flexible customisation options, including motorisation and stroke length adjustments, to fit your specific application requirements.
- Long Lifecycle: Designed for longevity, our products can withstand demanding conditions and offer extended operational life, even in vacuum environments.
If you would like to discuss your specific requirements please contact us today for a consultation.
Push Pull Actuators: High-Precision Solutions for Industrial Applications series and product options
If you would like to discuss your project with our engineering team, please contact us.
